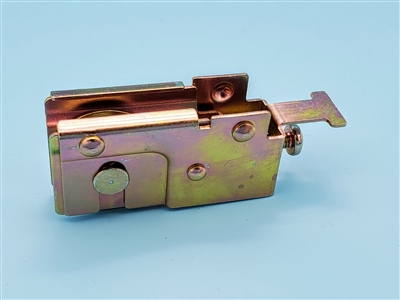

This high-quality sliding door roller assembly has t-shaped tab (commonly called a “K” Tab) and one 1-1/8" precision ball-bearing steel roller. The housing height is adjustable via a screw on the rear of the housing. This assembly is used by many door manufacturers.

• Roller diameter: 1-1/8"
• Housing width: 3/4"
• Housing width at dimple: 7/8”
• Housing height: 1-1/4"
• Housing length: 2-1/4”

Replaces: C.R. Laurence / Prime-Line Products D1523, Slide-co 13181, Swisco 81-148, All About Doors 13159, StryBuc 9-292

Package contains: One (1) roller assembly

This assembly is also available with an 1-1/4" roller - see P-4923
